0x01 前言

kdatacenter是韩国的一家VPS服务商,因为地理位置的优势,所以网络速度较为理想。可能是因为韩国地少,宽带贵的原因,他家的VPS非常昂贵,完全是土豪级别的。

之前一直想做个测试,无奈最低配置也需要每月19美元,摸摸自己的荷包还是不敢下手。有位网友得知此情况,特意借用他的VPS给我做个简单的性能测试,在这里要感谢@Gary。

为感谢@,以下是Gary在该厂商的推荐计划地址,如果大家有需要,可点击以下地址进行购买:

他家的VPS分为LIGHT与STANDARD两个版本,以下是两个版本的价格:

从价目表中可以看出价格较其他厂商高出不少,配置看上去也一般,而且还限流量,看上去性价比确实不高。

0x02 配置

这次测试的VPS配置是最低的一级,信息如下:

  • CPU:1核心
  • 内存:1G
  • 硬盘:100G SSD
  • 带宽:1G
  • 流量:500G
  • 系统:centos7

以上配置需要月付19美元,使用KVM虚拟化平台,具体的CPU型号则无法得知。本次测试机的IP地址在以下C段中:

  • 27.102.115.0/24

该IP地址属于韩国的一家电信企业:GNJ-AS-KR DAOU TECHNOLOGY, KR。信息不多,也没什么可以关注的点,接下来直接进行测试。

0x03 网络测试

0x03.1 ping

首先是长ping测试,以下是测试结果:

--- 27.102.115.xxx ping statistics ---
6402 packets transmitted, 6218 received, 2% packet loss, time 6406035ms
rtt min/avg/max/mdev = 66.834/111.271/306.081/46.722 ms

共计ping了6402次,有2%的丢包,而且平均延迟在111ms。

我进行这个测试是在北京时间晚上的8点,测试时发现一个有趣的现象:在ping了约45分钟后延迟从135ms左右下降到75ms左右,不知道是不是因为网络压力下降的原因导致的。

0x03.2 wget

随后安装个nginx,使用浏览器通过HTTP协议下载1G大小的文件,以下是结果:

[root@web ~]# wget http://27.102.115.xxx/1gb-1.test
--2018-10-30 20:44:57--  http://27.102.115.xxx/1gb-1.test
Connecting to 27.102.115.xxx:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 1073741824 (1.0G) [application/octet-stream]
Saving to: ‘1gb-1.test’

100%[===================================>] 1,073,741,824 3.50MB/s   in 4m 32s

2018-10-30 20:49:32 (3.76 MB/s) - ‘1gb-1.test’ saved [1073741824/1073741824]

我的位置在广东深圳,使用电信游戏宽带,下行200M。使用wget下载文件的速度非常稳定,保持在3.5m/s,这速度还是不错的,至少比众多美欧和日本的厂家要好。

0x03.3 路由追踪

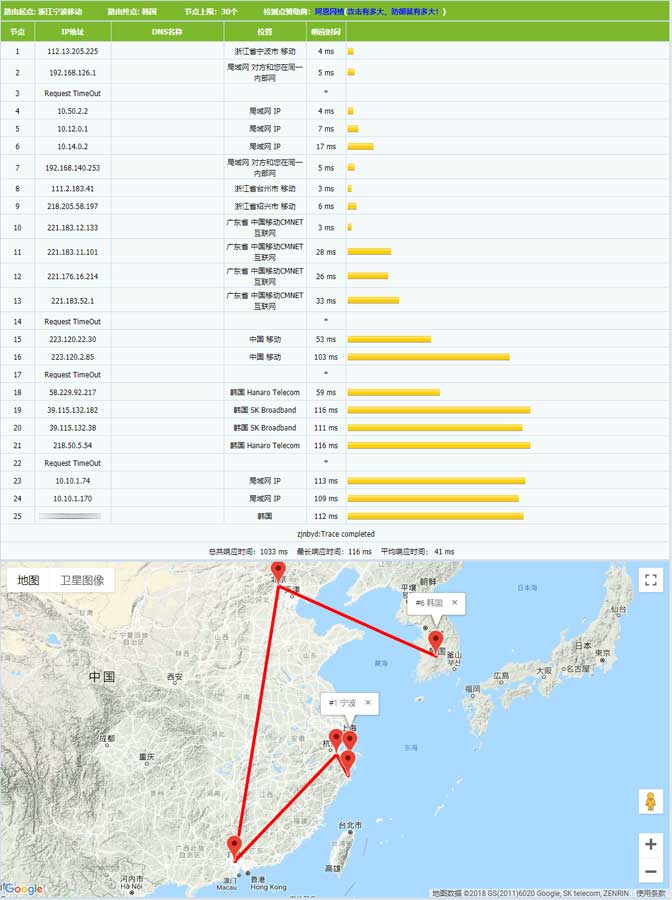

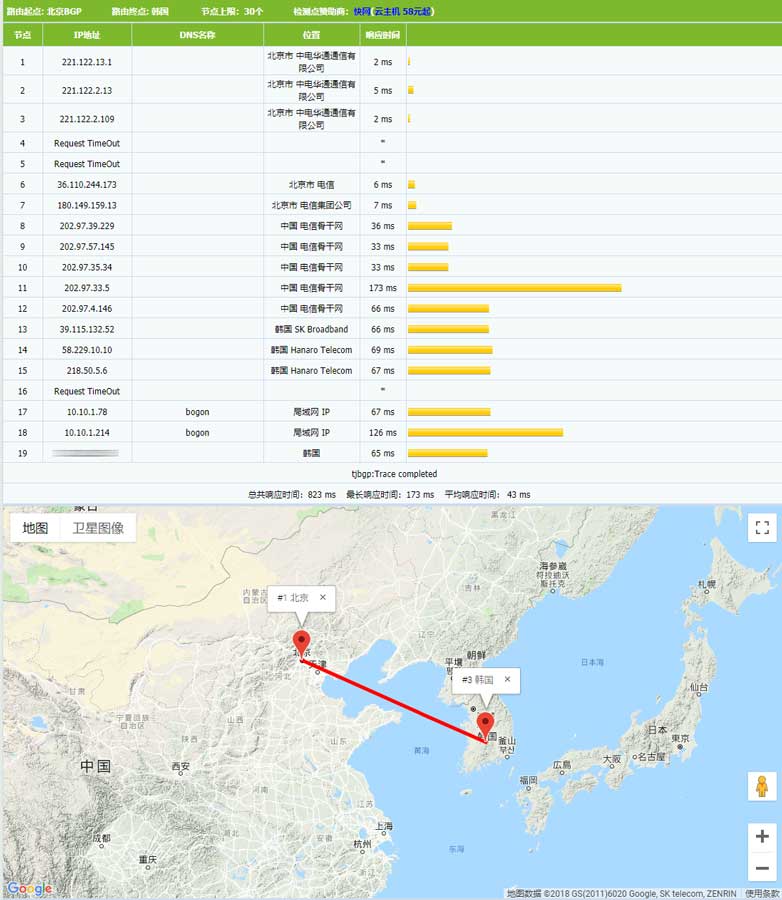

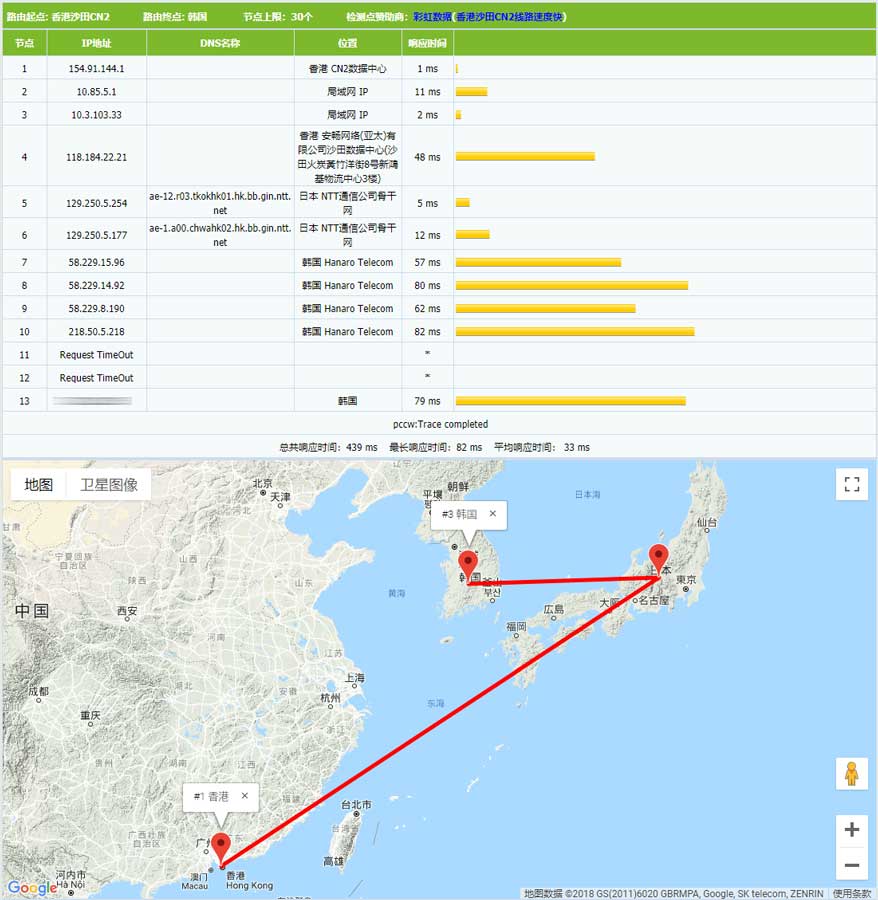

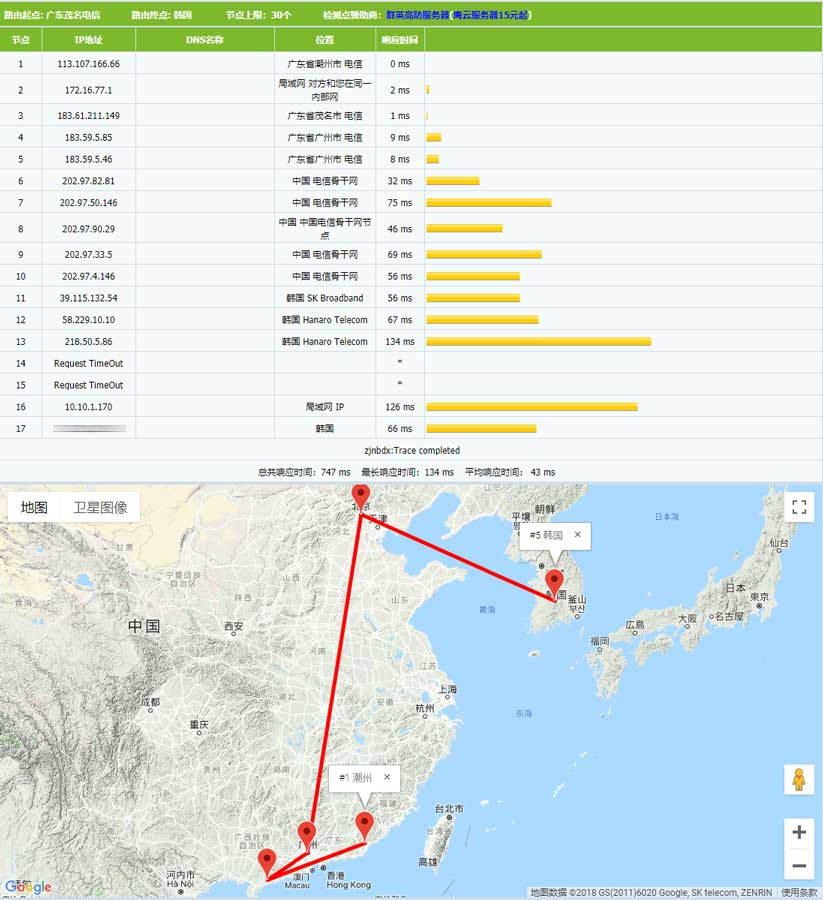

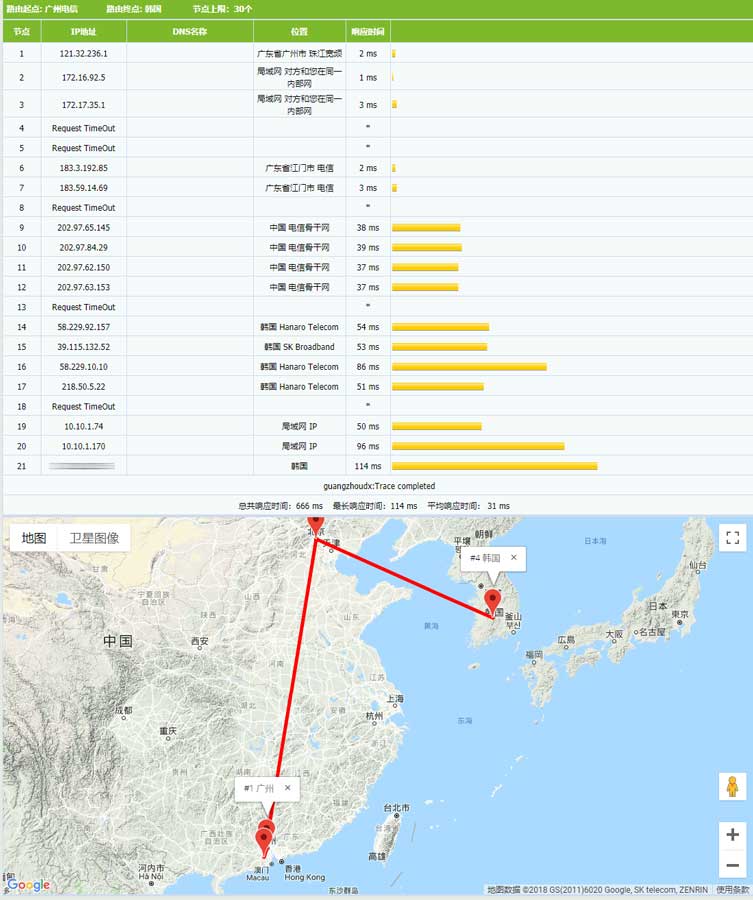

以下是路由追踪的结果:

从路由追踪的结果可以看出,大陆的数据基本是在北京上岸,而香港则绕路日本。如果主要用户是在东北,则延迟可能会很低,而且速度也较快;如果用户在南方,则延迟较高。

因为没有其他国家访客访问的需求,所以没有测试其他国家的链路情况。

0x03.4 speedtest

下面是speedtest的结果:

# 测试点为韩国kdatacenter
Retrieving speedtest.net configuration...
Testing from Daou Technology (27.102.115.xxx)...
Retrieving speedtest.net server list...
Selecting best server based on ping...
Hosted by kdatacenter.com (Seoul) [8.34 km]: 4.295 ms
Testing download speed......
Download: 303.70 Mbit/s
Testing upload speed............................

# 测试点为辽宁联通
[root@localhost ~]# speedtest --server 5017
Retrieving speedtest.net configuration...
Testing from Daou Technology (27.102.115.xxx)...
Retrieving speedtest.net server list...
Retrieving information for the selected server...
Hosted by China Unicom,Liaoning Branch (Shenyang) [538.87 km]: 138.721 ms
Testing download speed......
Download: 62.18 Mbit/s
Testing upload speed............................
Upload: 110.89 Mbit/s

# 测试点为上海联通
[root@localhost ~]# speedtest --server 5083
Retrieving speedtest.net configuration...
Testing from Daou Technology (27.102.115.xxx)...
Retrieving speedtest.net server list...
Retrieving information for the selected server...
Hosted by Shanghai Branch, China Unicom (Shanghai) [862.74 km]: 28.568 ms
Testing download speed......
Download: 178.87 Mbit/s
Testing upload speed............................
Upload: 291.04 Mbit/s

# 测试点为浙江电信
[root@localhost ~]# speedtest --server 7509
Retrieving speedtest.net configuration...
Testing from Daou Technology (27.102.115.xxx)...
Retrieving speedtest.net server list...
Retrieving information for the selected server...
Hosted by China Telecom ZheJiang Branch (Hangzhou) [1022.46 km]: 170.07 ms
Testing download speed......
Download: 8.94 Mbit/s
Testing upload speed............................
Upload: 47.75 Mbit/s

# 测试点为广州电信
[root@localhost ~]# speedtest --server 17251
Retrieving speedtest.net configuration...
Testing from Daou Technology (27.102.115.xxx)...
Retrieving speedtest.net server list...
Retrieving information for the selected server...
Hosted by ChinaTelecom-GZ (Guangzhou) [2065.53 km]: 146.181 ms
Testing download speed......
Download: 13.21 Mbit/s
Testing upload speed............................
Upload: 76.50 Mbit/s

# 测试点为海口移动
[root@localhost ~]# speedtest --server 16503
Retrieving speedtest.net configuration...
Testing from Daou Technology (27.102.115.xxx)...
Retrieving speedtest.net server list...
Retrieving information for the selected server...
Hosted by Chinamobile,Hainan (Haikou) [2521.38 km]: 165.776 ms
Testing download speed......
Download: 4.19 Mbit/s
Testing upload speed............................
Upload: 13.75 Mbit/s

# 测试点为广州移动
[root@localhost ~]# speedtest --server 6611
Retrieving speedtest.net configuration...
Testing from Daou Technology (27.102.115.xxx)...
Retrieving speedtest.net server list...
Retrieving information for the selected server...
Hosted by China Mobile,Guangdong (Guangzhou) [2065.53 km]: 228.918 ms
Testing download speed......
Download: 47.26 Mbit/s
Testing upload speed............................
Upload: 19.55 Mbit/s

联通的速度较快,其次是移动和电信;而且北方的速度较南方要快。

0x04 性能测试

0x04.1 dd磁盘测试

[root@localhost codex]# dd bs=1M count=1024 if=/dev/zero of=1gb-1.test conv=fdatasync
1024+0 records in
1024+0 records out
1073741824 bytes (1.1 GB) copied, 1.78542 s, 601 MB/s

[root@localhost codex]# dd bs=1M count=1024 if=/dev/zero of=1gb-2.test conv=fdatasync
1024+0 records in
1024+0 records out
1073741824 bytes (1.1 GB) copied, 1.49546 s, 718 MB/s

[root@localhost codex]# dd bs=1M count=1024 if=/dev/zero of=1gb-3.test conv=fdatasync
1024+0 records in
1024+0 records out
1073741824 bytes (1.1 GB) copied, 1.52634 s, 703 MB/s

[root@localhost codex]# dd bs=1M count=1024 if=/dev/zero of=1gb-4.test conv=fdatasync
1024+0 records in
1024+0 records out
1073741824 bytes (1.1 GB) copied, 1.471 s, 730 MB/s

[root@localhost codex]# dd bs=1M count=1024 if=/dev/zero of=1gb-5.test conv=fdatasync
1024+0 records in
1024+0 records out
1073741824 bytes (1.1 GB) copied, 1.18966 s, 903 MB/s

磁盘速度非常好,而且磁盘空间有100G,毕竟是SSD,那么大的容量,也是要花不少钱的。

0x04.2 fio

CRC 加密测试:

[root@localhost ~]# fio -crctest
md5:		  428.75 MiB/sec
crc64:		  332.50 MiB/sec
crc32:		  293.47 MiB/sec
crc32c:		  328.80 MiB/sec
crc16:		  318.03 MiB/sec
crc7:		  358.97 MiB/sec
sha1:		  309.79 MiB/sec
sha256:		  145.47 MiB/sec
sha512:		  238.34 MiB/sec
xxhash:		 4462.50 MiB/sec
murmur3:	 2343.36 MiB/sec
jhash:		 1651.57 MiB/sec
fnv:		 2730.93 MiB/sec
sha3-224:	   99.80 MiB/sec
sha3-256:	   99.05 MiB/sec
sha3-384:	   71.86 MiB/sec
sha3-512:	   50.45 MiB/sec

通过与之前测试的VPS结果进行比对,kdatacenter的性能十分理想,要知道这只是单核心的VPS。

4k随机读写测试:

[root@localhost ~]# fio -filename=/root/bench/test.fio  -direct=1 -rw=rw -bs=4k -size 1G -numjobs=8 -runtime=30 -group_reporting -name=file
file: (g=0): rw=rw, bs=(R) 4096B-4096B, (W) 4096B-4096B, (T) 4096B-4096B, ioengine=psync, iodepth=1
...
fio-3.11-30-g19971
Starting 8 processes
Jobs: 8 (f=8): [M(8)][100.0%][r=11.6MiB/s,w=11.9MiB/s][r=2977,w=3059 IOPS][eta 00m:00s]
file: (groupid=0, jobs=8): err= 0: pid=25422: Tue Oct 30 11:12:14 2018
  read: IOPS=3785, BW=14.8MiB/s (15.5MB/s)(444MiB/30004msec)
    clat (usec): min=120, max=123943, avg=1303.55, stdev=2173.49
     lat (usec): min=121, max=123944, avg=1304.67, stdev=2173.50
    clat percentiles (usec):
     |  1.00th=[  176],  5.00th=[  371], 10.00th=[  478], 20.00th=[  701],
     | 30.00th=[  840], 40.00th=[  979], 50.00th=[ 1123], 60.00th=[ 1254],
     | 70.00th=[ 1434], 80.00th=[ 1647], 90.00th=[ 1991], 95.00th=[ 2343],
     | 99.00th=[ 3621], 99.50th=[ 6128], 99.90th=[38011], 99.95th=[54264],
     | 99.99th=[74974]
   bw (  KiB/s): min=  832, max= 2560, per=12.49%, avg=1891.74, stdev=279.37, samples=480
   iops        : min=  208, max=  640, avg=472.89, stdev=69.83, samples=480
  write: IOPS=3786, BW=14.8MiB/s (15.5MB/s)(444MiB/30004msec)
    clat (usec): min=97, max=123664, avg=798.30, stdev=1867.28
     lat (usec): min=98, max=123665, avg=799.52, stdev=1867.33
    clat percentiles (usec):
     |  1.00th=[  114],  5.00th=[  117], 10.00th=[  120], 20.00th=[  127],
     | 30.00th=[  147], 40.00th=[  163], 50.00th=[  326], 60.00th=[  807],
     | 70.00th=[ 1090], 80.00th=[ 1369], 90.00th=[ 1762], 95.00th=[ 2147],
     | 99.00th=[ 3130], 99.50th=[ 4080], 99.90th=[21103], 99.95th=[41157],
     | 99.99th=[74974]
   bw (  KiB/s): min=  880, max= 2800, per=12.49%, avg=1892.46, stdev=292.47, samples=480
   iops        : min=  220, max=  700, avg=473.07, stdev=73.10, samples=480
  lat (usec)   : 100=0.01%, 250=25.90%, 500=5.80%, 750=8.94%, 1000=13.48%
  lat (msec)   : 2=37.67%, 4=7.54%, 10=0.39%, 20=0.13%, 50=0.10%
  lat (msec)   : 100=0.04%, 250=0.01%
  cpu          : usr=0.66%, sys=1.93%, ctx=449404, majf=0, minf=95
  IO depths    : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     issued rwts: total=113580,113620,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=1

Run status group 0 (all jobs):
   READ: bw=14.8MiB/s (15.5MB/s), 14.8MiB/s-14.8MiB/s (15.5MB/s-15.5MB/s), io=444MiB (465MB), run=30004-30004msec
  WRITE: bw=14.8MiB/s (15.5MB/s), 14.8MiB/s-14.8MiB/s (15.5MB/s-15.5MB/s), io=444MiB (465MB), run=30004-30004msec

Disk stats (read/write):
  vda: ios=113168/113370, merge=0/607, ticks=23586/15827, in_queue=47449, util=99.67%

32k随机读写测试:

[root@localhost ~]# fio -filename=/root/bench/test.fio  -direct=1 -rw=rw -bs=32k -size 1G -numjobs=8 -runtime=30 -group_reporting -name=file
file: (g=0): rw=rw, bs=(R) 32.0KiB-32.0KiB, (W) 32.0KiB-32.0KiB, (T) 32.0KiB-32.0KiB, ioengine=psync, iodepth=1
...
fio-3.11-30-g19971
Starting 8 processes
Jobs: 8 (f=8): [M(8)][100.0%][r=58.0MiB/s,w=58.7MiB/s][r=1887,w=1878 IOPS][eta 00m:00s]
file: (groupid=0, jobs=8): err= 0: pid=25481: Tue Oct 30 11:13:19 2018
  read: IOPS=2179, BW=68.1MiB/s (71.4MB/s)(2043MiB/30005msec)
    clat (usec): min=220, max=111893, avg=2308.69, stdev=3027.44
     lat (usec): min=221, max=111894, avg=2309.87, stdev=3027.50
    clat percentiles (usec):
     |  1.00th=[  285],  5.00th=[  685], 10.00th=[  914], 20.00th=[ 1221],
     | 30.00th=[ 1450], 40.00th=[ 1663], 50.00th=[ 1893], 60.00th=[ 2147],
     | 70.00th=[ 2474], 80.00th=[ 2868], 90.00th=[ 3621], 95.00th=[ 4424],
     | 99.00th=[ 8225], 99.50th=[15795], 99.90th=[51643], 99.95th=[60556],
     | 99.99th=[92799]
   bw (  KiB/s): min= 4864, max=12416, per=12.49%, avg=8712.82, stdev=1197.11, samples=480
   iops        : min=  152, max=  388, avg=272.21, stdev=37.43, samples=480
  write: IOPS=2181, BW=68.2MiB/s (71.5MB/s)(2045MiB/30005msec)
    clat (usec): min=150, max=103894, avg=1348.34, stdev=2678.27
     lat (usec): min=152, max=103896, avg=1350.25, stdev=2678.32
    clat percentiles (usec):
     |  1.00th=[  172],  5.00th=[  176], 10.00th=[  180], 20.00th=[  188],
     | 30.00th=[  202], 40.00th=[  225], 50.00th=[  652], 60.00th=[ 1385],
     | 70.00th=[ 1795], 80.00th=[ 2278], 90.00th=[ 2933], 95.00th=[ 3621],
     | 99.00th=[ 6652], 99.50th=[10945], 99.90th=[40633], 99.95th=[57410],
     | 99.99th=[92799]
   bw (  KiB/s): min= 4800, max=13504, per=12.49%, avg=8720.60, stdev=1343.92, samples=480
   iops        : min=  150, max=  422, avg=272.45, stdev=42.01, samples=480
  lat (usec)   : 250=22.69%, 500=3.14%, 750=2.48%, 1000=4.39%
  lat (msec)   : 2=31.78%, 4=30.20%, 10=4.63%, 20=0.38%, 50=0.21%
  lat (msec)   : 100=0.09%, 250=0.01%
  cpu          : usr=0.43%, sys=1.30%, ctx=258804, majf=0, minf=110
  IO depths    : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     issued rwts: total=65391,65442,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=1

Run status group 0 (all jobs):
   READ: bw=68.1MiB/s (71.4MB/s), 68.1MiB/s-68.1MiB/s (71.4MB/s-71.4MB/s), io=2043MiB (2143MB), run=30005-30005msec
  WRITE: bw=68.2MiB/s (71.5MB/s), 68.2MiB/s-68.2MiB/s (71.5MB/s-71.5MB/s), io=2045MiB (2144MB), run=30005-30005msec

Disk stats (read/write):
  vda: ios=65120/65227, merge=0/113, ticks=34655/11807, in_queue=52778, util=99.65%

1m随机读写测试:

[root@localhost ~]# fio -filename=/root/bench/test.fio  -direct=1 -rw=rw -bs=1m -size 1G -numjobs=8 -runtime=30 -group_reporting -name=file
file: (g=0): rw=rw, bs=(R) 1024KiB-1024KiB, (W) 1024KiB-1024KiB, (T) 1024KiB-1024KiB, ioengine=psync, iodepth=1
...
fio-3.11-30-g19971
Starting 8 processes
Jobs: 3 (f=3): [M(1),_(1),M(1),_(3),M(1),_(1)][100.0%][r=128MiB/s,w=142MiB/s][r=128,w=142 IOPS][eta 00m:00s]
file: (groupid=0, jobs=8): err= 0: pid=25539: Tue Oct 30 11:14:14 2018
  read: IOPS=167, BW=167MiB/s (175MB/s)(4012MiB/24004msec)
    clat (msec): min=2, max=120, avg=30.06, stdev=12.87
     lat (msec): min=2, max=120, avg=30.06, stdev=12.87
    clat percentiles (msec):
     |  1.00th=[    4],  5.00th=[   15], 10.00th=[   18], 20.00th=[   21],
     | 30.00th=[   24], 40.00th=[   26], 50.00th=[   29], 60.00th=[   32],
     | 70.00th=[   35], 80.00th=[   39], 90.00th=[   45], 95.00th=[   52],
     | 99.00th=[   75], 99.50th=[   94], 99.90th=[  117], 99.95th=[  121],
     | 99.99th=[  122]
   bw (  KiB/s): min= 8192, max=34746, per=12.55%, avg=21486.04, stdev=4746.56, samples=375
   iops        : min=    8, max=   33, avg=20.87, stdev= 4.66, samples=375
  write: IOPS=174, BW=174MiB/s (183MB/s)(4180MiB/24004msec)
    clat (msec): min=2, max=127, avg=16.48, stdev=16.53
     lat (msec): min=2, max=127, avg=16.52, stdev=16.54
    clat percentiles (msec):
     |  1.00th=[    3],  5.00th=[    3], 10.00th=[    3], 20.00th=[    3],
     | 30.00th=[    3], 40.00th=[    3], 50.00th=[    6], 60.00th=[   22],
     | 70.00th=[   27], 80.00th=[   32], 90.00th=[   37], 95.00th=[   44],
     | 99.00th=[   60], 99.50th=[   80], 99.90th=[  110], 99.95th=[  118],
     | 99.99th=[  128]
   bw (  KiB/s): min= 6131, max=51200, per=12.60%, avg=22468.86, stdev=7356.00, samples=375
   iops        : min=    5, max=   50, avg=21.83, stdev= 7.20, samples=375
  lat (msec)   : 4=25.96%, 10=1.18%, 20=10.41%, 50=58.45%, 100=3.67%
  lat (msec)   : 250=0.32%
  cpu          : usr=0.14%, sys=0.23%, ctx=16222, majf=0, minf=88
  IO depths    : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     issued rwts: total=4012,4180,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=1

Run status group 0 (all jobs):
   READ: bw=167MiB/s (175MB/s), 167MiB/s-167MiB/s (175MB/s-175MB/s), io=4012MiB (4207MB), run=24004-24004msec
  WRITE: bw=174MiB/s (183MB/s), 174MiB/s-174MiB/s (183MB/s-183MB/s), io=4180MiB (4383MB), run=24004-24004msec

Disk stats (read/write):
  vda: ios=3991/4223, merge=0/112, ticks=37738/9764, in_queue=48575, util=99.15%

毕竟是SSD,读写性能都很优异。

0x04.3 ramsmp

[root@localhost ramsmp-3.5.0]# ./ramsmp -b 1
RAMspeed/SMP (Linux) v3.5.0 by Rhett M. Hollander and Paul V. Bolotoff, 2002-09

8Gb per pass mode, 2 processes

INTEGER & WRITING         1 Kb block: 23788.11 MB/s
INTEGER & WRITING         2 Kb block: 20391.37 MB/s
INTEGER & WRITING         4 Kb block: 24102.00 MB/s
INTEGER & WRITING         8 Kb block: 22444.77 MB/s
INTEGER & WRITING        16 Kb block: 23860.52 MB/s
INTEGER & WRITING        32 Kb block: 19736.45 MB/s
INTEGER & WRITING        64 Kb block: 20858.28 MB/s
INTEGER & WRITING       128 Kb block: 21266.16 MB/s
INTEGER & WRITING       256 Kb block: 18582.32 MB/s
INTEGER & WRITING       512 Kb block: 18921.95 MB/s
INTEGER & WRITING      1024 Kb block: 18566.75 MB/s
INTEGER & WRITING      2048 Kb block: 18077.74 MB/s
INTEGER & WRITING      4096 Kb block: 15721.72 MB/s
INTEGER & WRITING      8192 Kb block: 16391.93 MB/s
INTEGER & WRITING     16384 Kb block: 10579.26 MB/s
INTEGER & WRITING     32768 Kb block: 8188.77 MB/s

----------------------------------------------------------------------------------
[root@localhost ramsmp-3.5.0]# ./ramsmp -b 2
RAMspeed/SMP (Linux) v3.5.0 by Rhett M. Hollander and Paul V. Bolotoff, 2002-09

8Gb per pass mode, 2 processes

INTEGER & READING         1 Kb block: 51135.81 MB/s
INTEGER & READING         2 Kb block: 51727.74 MB/s
INTEGER & READING         4 Kb block: 48676.73 MB/s
INTEGER & READING         8 Kb block: 51781.53 MB/s
INTEGER & READING        16 Kb block: 37974.66 MB/s
INTEGER & READING        32 Kb block: 46202.94 MB/s
INTEGER & READING        64 Kb block: 32603.21 MB/s
INTEGER & READING       128 Kb block: 33716.76 MB/s
INTEGER & READING       256 Kb block: 29645.10 MB/s
INTEGER & READING       512 Kb block: 23635.02 MB/s
INTEGER & READING      1024 Kb block: 19958.15 MB/s
INTEGER & READING      2048 Kb block: 22328.28 MB/s
INTEGER & READING      4096 Kb block: 20784.17 MB/s
INTEGER & READING      8192 Kb block: 18004.33 MB/s
INTEGER & READING     16384 Kb block: 12606.12 MB/s
INTEGER & READING     32768 Kb block: 7490.63 MB/s

----------------------------------------------------------------------------------
[root@localhost ramsmp-3.5.0]# ./ramsmp -b 3
RAMspeed/SMP (Linux) v3.5.0 by Rhett M. Hollander and Paul V. Bolotoff, 2002-09

8Gb per pass mode, 2 processes

INTEGER   Copy:      9928.34 MB/s
INTEGER   Scale:     9735.97 MB/s
INTEGER   Add:       10460.51 MB/s
INTEGER   Triad:     10420.26 MB/s
---
INTEGER   AVERAGE:   10136.27 MB/s


----------------------------------------------------------------------------------
[root@localhost ramsmp-3.5.0]# ./ramsmp -b 4
RAMspeed/SMP (Linux) v3.5.0 by Rhett M. Hollander and Paul V. Bolotoff, 2002-09

8Gb per pass mode, 2 processes

FL-POINT & WRITING        1 Kb block: 24733.65 MB/s
FL-POINT & WRITING        2 Kb block: 25263.19 MB/s
FL-POINT & WRITING        4 Kb block: 25188.47 MB/s
FL-POINT & WRITING        8 Kb block: 21291.99 MB/s
FL-POINT & WRITING       16 Kb block: 24800.86 MB/s
FL-POINT & WRITING       32 Kb block: 23660.57 MB/s
FL-POINT & WRITING       64 Kb block: 21675.25 MB/s
FL-POINT & WRITING      128 Kb block: 19090.47 MB/s
FL-POINT & WRITING      256 Kb block: 19539.12 MB/s
FL-POINT & WRITING      512 Kb block: 18368.39 MB/s
FL-POINT & WRITING     1024 Kb block: 17413.08 MB/s
FL-POINT & WRITING     2048 Kb block: 16316.37 MB/s
FL-POINT & WRITING     4096 Kb block: 17751.33 MB/s
FL-POINT & WRITING     8192 Kb block: 15709.42 MB/s
FL-POINT & WRITING    16384 Kb block: 11316.55 MB/s
FL-POINT & WRITING    32768 Kb block: 7699.53 MB/s

----------------------------------------------------------------------------------
[root@localhost ramsmp-3.5.0]# ./ramsmp -b 5
RAMspeed/SMP (Linux) v3.5.0 by Rhett M. Hollander and Paul V. Bolotoff, 2002-09

8Gb per pass mode, 2 processes

FL-POINT & READING        1 Kb block: 25444.93 MB/s
FL-POINT & READING        2 Kb block: 25498.99 MB/s
FL-POINT & READING        4 Kb block: 24645.90 MB/s
FL-POINT & READING        8 Kb block: 21219.33 MB/s
FL-POINT & READING       16 Kb block: 25136.78 MB/s
FL-POINT & READING       32 Kb block: 24976.09 MB/s
FL-POINT & READING       64 Kb block: 24825.83 MB/s
FL-POINT & READING      128 Kb block: 24762.51 MB/s
FL-POINT & READING      256 Kb block: 20836.66 MB/s
FL-POINT & READING      512 Kb block: 22658.14 MB/s
FL-POINT & READING     1024 Kb block: 22764.14 MB/s
FL-POINT & READING     2048 Kb block: 20524.23 MB/s
FL-POINT & READING     4096 Kb block: 21124.76 MB/s
FL-POINT & READING     8192 Kb block: 20438.62 MB/s
FL-POINT & READING    16384 Kb block: 12177.15 MB/s
FL-POINT & READING    32768 Kb block: 9136.85 MB/s

----------------------------------------------------------------------------------
[root@localhost ramsmp-3.5.0]# ./ramsmp -b 6
RAMspeed/SMP (Linux) v3.5.0 by Rhett M. Hollander and Paul V. Bolotoff, 2002-09

8Gb per pass mode, 2 processes

FL-POINT  Copy:      6887.73 MB/s
FL-POINT  Scale:     7144.93 MB/s
FL-POINT  Add:       8583.59 MB/s
FL-POINT  Triad:     9182.52 MB/s
---
FL-POINT  AVERAGE:   7949.69 MB/s


----------------------------------------------------------------------------------
[root@localhost ramsmp-3.5.0]# ./ramsmp -b 7
RAMspeed/SMP (Linux) v3.5.0 by Rhett M. Hollander and Paul V. Bolotoff, 2002-09

8Gb per pass mode, 2 processes

MMX & WRITING             1 Kb block: 25711.73 MB/s
MMX & WRITING             2 Kb block: 24823.14 MB/s
MMX & WRITING             4 Kb block: 25296.15 MB/s
MMX & WRITING             8 Kb block: 22146.58 MB/s
MMX & WRITING            16 Kb block: 24918.37 MB/s
MMX & WRITING            32 Kb block: 24668.23 MB/s
MMX & WRITING            64 Kb block: 21996.34 MB/s
MMX & WRITING           128 Kb block: 19348.85 MB/s
MMX & WRITING           256 Kb block: 20863.07 MB/s
MMX & WRITING           512 Kb block: 18856.07 MB/s
MMX & WRITING          1024 Kb block: 16405.12 MB/s
MMX & WRITING          2048 Kb block: 18356.39 MB/s
MMX & WRITING          4096 Kb block: 18109.22 MB/s
MMX & WRITING          8192 Kb block: 15042.59 MB/s
MMX & WRITING         16384 Kb block: 11406.13 MB/s
MMX & WRITING         32768 Kb block: 7222.79 MB/s

----------------------------------------------------------------------------------
[root@localhost ramsmp-3.5.0]# ./ramsmp -b 8
RAMspeed/SMP (Linux) v3.5.0 by Rhett M. Hollander and Paul V. Bolotoff, 2002-09

8Gb per pass mode, 2 processes

MMX & READING             1 Kb block: 51813.86 MB/s
MMX & READING             2 Kb block: 51715.98 MB/s
MMX & READING             4 Kb block: 52176.18 MB/s
MMX & READING             8 Kb block: 52337.52 MB/s
MMX & READING            16 Kb block: 50996.55 MB/s
MMX & READING            32 Kb block: 39057.76 MB/s
MMX & READING            64 Kb block: 51068.40 MB/s
MMX & READING           128 Kb block: 50760.51 MB/s
MMX & READING           256 Kb block: 50897.74 MB/s
MMX & READING           512 Kb block: 50728.28 MB/s
MMX & READING          1024 Kb block: 49847.58 MB/s
MMX & READING          2048 Kb block: 51054.89 MB/s
MMX & READING          4096 Kb block: 31915.82 MB/s
MMX & READING          8192 Kb block: 22908.34 MB/s
MMX & READING         16384 Kb block: 25454.98 MB/s
MMX & READING         32768 Kb block: 24858.95 MB/s

----------------------------------------------------------------------------------
[root@localhost ramsmp-3.5.0]# ./ramsmp -b 9
RAMspeed/SMP (Linux) v3.5.0 by Rhett M. Hollander and Paul V. Bolotoff, 2002-09

8Gb per pass mode, 2 processes

MMX       Copy:      10089.34 MB/s
MMX       Scale:     10671.88 MB/s
MMX       Add:       11147.19 MB/s
MMX       Triad:     11757.71 MB/s
---
MMX       AVERAGE:   10916.53 MB/s

----------------------------------------------------------------------------------
[root@localhost ramsmp-3.5.0]# ./ramsmp -b 10
RAMspeed/SMP (Linux) v3.5.0 by Rhett M. Hollander and Paul V. Bolotoff, 2002-09

8Gb per pass mode, 2 processes

SSE & WRITING             1 Kb block: 49261.70 MB/s
SSE & WRITING             2 Kb block: 49150.71 MB/s
SSE & WRITING             4 Kb block: 50502.59 MB/s
SSE & WRITING             8 Kb block: 50959.79 MB/s
SSE & WRITING            16 Kb block: 50300.46 MB/s
SSE & WRITING            32 Kb block: 50700.14 MB/s
SSE & WRITING            64 Kb block: 30106.32 MB/s
SSE & WRITING           128 Kb block: 24667.06 MB/s
SSE & WRITING           256 Kb block: 27589.03 MB/s
SSE & WRITING           512 Kb block: 22739.01 MB/s
SSE & WRITING          1024 Kb block: 21675.35 MB/s
SSE & WRITING          2048 Kb block: 18641.41 MB/s
SSE & WRITING          4096 Kb block: 20975.57 MB/s
SSE & WRITING          8192 Kb block: 20052.84 MB/s
SSE & WRITING         16384 Kb block: 11174.76 MB/s
SSE & WRITING         32768 Kb block: 8394.22 MB/s

----------------------------------------------------------------------------------
[root@localhost ramsmp-3.5.0]# ./ramsmp -b 11
RAMspeed/SMP (Linux) v3.5.0 by Rhett M. Hollander and Paul V. Bolotoff, 2002-09

8Gb per pass mode, 2 processes

SSE & READING             1 Kb block: 103137.49 MB/s
SSE & READING             2 Kb block: 104808.34 MB/s
SSE & READING             4 Kb block: 104377.57 MB/s
SSE & READING             8 Kb block: 104447.37 MB/s
SSE & READING            16 Kb block: 104400.72 MB/s
SSE & READING            32 Kb block: 105826.47 MB/s
SSE & READING            64 Kb block: 102381.79 MB/s
SSE & READING           128 Kb block: 99526.80 MB/s
SSE & READING           256 Kb block: 105257.84 MB/s
SSE & READING           512 Kb block: 100977.87 MB/s
SSE & READING          1024 Kb block: 97424.41 MB/s
SSE & READING          2048 Kb block: 98216.42 MB/s
SSE & READING          4096 Kb block: 34526.05 MB/s
SSE & READING          8192 Kb block: 34880.29 MB/s
SSE & READING         16384 Kb block: 31465.31 MB/s
SSE & READING         32768 Kb block: 30170.77 MB/s

----------------------------------------------------------------------------------
[root@localhost ramsmp-3.5.0]# ./ramsmp -b 12
RAMspeed/SMP (Linux) v3.5.0 by Rhett M. Hollander and Paul V. Bolotoff, 2002-09

8Gb per pass mode, 2 processes

SSE       Copy:      9377.42 MB/s
SSE       Scale:     10265.84 MB/s
SSE       Add:       11492.49 MB/s
SSE       Triad:     11404.29 MB/s
---
SSE       AVERAGE:   10635.01 MB/s

----------------------------------------------------------------------------------
[root@localhost ramsmp-3.5.0]# ./ramsmp -b 13
RAMspeed/SMP (Linux) v3.5.0 by Rhett M. Hollander and Paul V. Bolotoff, 2002-09

8Gb per pass mode, 2 processes

MMX (nt) & WRITING        1 Kb block: 5341.18 MB/s
MMX (nt) & WRITING        2 Kb block: 5671.43 MB/s
MMX (nt) & WRITING        4 Kb block: 5356.38 MB/s
MMX (nt) & WRITING        8 Kb block: 5456.84 MB/s
MMX (nt) & WRITING       16 Kb block: 5476.65 MB/s
MMX (nt) & WRITING       32 Kb block: 5599.62 MB/s
MMX (nt) & WRITING       64 Kb block: 5423.02 MB/s
MMX (nt) & WRITING      128 Kb block: 5597.12 MB/s
MMX (nt) & WRITING      256 Kb block: 5415.85 MB/s
MMX (nt) & WRITING      512 Kb block: 5496.82 MB/s
MMX (nt) & WRITING     1024 Kb block: 5714.30 MB/s
MMX (nt) & WRITING     2048 Kb block: 5497.90 MB/s
MMX (nt) & WRITING     4096 Kb block: 5494.16 MB/s
MMX (nt) & WRITING     8192 Kb block: 5415.15 MB/s
MMX (nt) & WRITING    16384 Kb block: 5191.40 MB/s
MMX (nt) & WRITING    32768 Kb block: 5401.95 MB/s

----------------------------------------------------------------------------------
[root@localhost ramsmp-3.5.0]# ./ramsmp -b 14
RAMspeed/SMP (Linux) v3.5.0 by Rhett M. Hollander and Paul V. Bolotoff, 2002-09

8Gb per pass mode, 2 processes

MMX (nt) & READING        1 Kb block: 48228.80 MB/s
MMX (nt) & READING        2 Kb block: 45994.45 MB/s
MMX (nt) & READING        4 Kb block: 45883.46 MB/s
MMX (nt) & READING        8 Kb block: 36294.30 MB/s
MMX (nt) & READING       16 Kb block: 46466.99 MB/s
MMX (nt) & READING       32 Kb block: 45812.80 MB/s
MMX (nt) & READING       64 Kb block: 45483.20 MB/s
MMX (nt) & READING      128 Kb block: 43808.32 MB/s
MMX (nt) & READING      256 Kb block: 44615.91 MB/s
MMX (nt) & READING      512 Kb block: 45108.15 MB/s
MMX (nt) & READING     1024 Kb block: 45361.61 MB/s
MMX (nt) & READING     2048 Kb block: 34828.18 MB/s
MMX (nt) & READING     4096 Kb block: 35383.20 MB/s
MMX (nt) & READING     8192 Kb block: 32253.52 MB/s
MMX (nt) & READING    16384 Kb block: 30773.38 MB/s
MMX (nt) & READING    32768 Kb block: 30829.57 MB/s

----------------------------------------------------------------------------------
[root@localhost ramsmp-3.5.0]# ./ramsmp -b 15
RAMspeed/SMP (Linux) v3.5.0 by Rhett M. Hollander and Paul V. Bolotoff, 2002-09

8Gb per pass mode, 2 processes

MMX (nt)  Copy:      6179.55 MB/s  [NTA prefetch]
MMX (nt)  Scale:     6164.91 MB/s  [NTA prefetch]
MMX (nt)  Add:       7897.33 MB/s  [T0 prefetch]
MMX (nt)  Triad:     7223.90 MB/s  [T0 prefetch]
---
MMX (nt)  AVERAGE:   6866.42 MB/s

----------------------------------------------------------------------------------
[root@localhost ramsmp-3.5.0]# ./ramsmp -b 16
RAMspeed/SMP (Linux) v3.5.0 by Rhett M. Hollander and Paul V. Bolotoff, 2002-09

8Gb per pass mode, 2 processes

SSE & WRITING (nt)        1 Kb block: 5610.24 MB/s
SSE & WRITING (nt)        2 Kb block: 5668.65 MB/s
SSE & WRITING (nt)        4 Kb block: 5615.00 MB/s
SSE & WRITING (nt)        8 Kb block: 5553.18 MB/s
SSE & WRITING (nt)       16 Kb block: 5627.70 MB/s
SSE & WRITING (nt)       32 Kb block: 5647.62 MB/s
SSE & WRITING (nt)       64 Kb block: 5666.26 MB/s
SSE & WRITING (nt)      128 Kb block: 5584.79 MB/s
SSE & WRITING (nt)      256 Kb block: 5816.26 MB/s
SSE & WRITING (nt)      512 Kb block: 5760.47 MB/s
SSE & WRITING (nt)     1024 Kb block: 5663.83 MB/s
SSE & WRITING (nt)     2048 Kb block: 5429.08 MB/s
SSE & WRITING (nt)     4096 Kb block: 5567.91 MB/s
SSE & WRITING (nt)     8192 Kb block: 5820.33 MB/s
SSE & WRITING (nt)    16384 Kb block: 5294.21 MB/s
SSE & WRITING (nt)    32768 Kb block: 5668.03 MB/s

内存性能较为优异。

0x04.4 Unix Benchmark

========================================================================
   BYTE UNIX Benchmarks (Version 5.1.3)

   System: localhost.localdomain: GNU/Linux
   OS: GNU/Linux -- 4.17.11-1.el7.elrepo.x86_64 -- #1 SMP Sat Jul 28 09:33:09 EDT 2018
   Machine: x86_64 (x86_64)
   Language: en_US.utf8 (charmap="UTF-8", collate="UTF-8")
   CPU 0: Common KVM processor (5200.0 bogomips)
          x86-64, MMX, Physical Address Ext, SYSENTER/SYSEXIT, SYSCALL/SYSRET
   11:27:56 up 89 days, 21:12,  2 users,  load average: 1.11, 1.56, 1.18; runlevel 2018-08-01

------------------------------------------------------------------------
Benchmark Run: Tue Oct 30 2018 11:27:56 - 11:56:02
1 CPU in system; running 1 parallel copy of tests

Dhrystone 2 using register variables       35078475.0 lps   (10.0 s, 7 samples)
Double-Precision Whetstone                     4145.9 MWIPS (10.0 s, 7 samples)
Execl Throughput                               3794.2 lps   (30.0 s, 2 samples)
File Copy 1024 bufsize 2000 maxblocks        398719.7 KBps  (30.0 s, 2 samples)
File Copy 256 bufsize 500 maxblocks          105408.0 KBps  (30.0 s, 2 samples)
File Copy 4096 bufsize 8000 maxblocks       1123975.6 KBps  (30.0 s, 2 samples)
Pipe Throughput                              616305.7 lps   (10.0 s, 7 samples)
Pipe-based Context Switching                 143260.0 lps   (10.0 s, 7 samples)
Process Creation                               9038.7 lps   (30.0 s, 2 samples)
Shell Scripts (1 concurrent)                   5143.9 lpm   (60.0 s, 2 samples)
Shell Scripts (8 concurrent)                    699.8 lpm   (60.1 s, 2 samples)
System Call Overhead                         487009.1 lps   (10.0 s, 7 samples)

System Benchmarks Index Values               BASELINE       RESULT    INDEX
Dhrystone 2 using register variables         116700.0   35078475.0   3005.9
Double-Precision Whetstone                       55.0       4145.9    753.8
Execl Throughput                                 43.0       3794.2    882.4
File Copy 1024 bufsize 2000 maxblocks          3960.0     398719.7   1006.9
File Copy 256 bufsize 500 maxblocks            1655.0     105408.0    636.9
File Copy 4096 bufsize 8000 maxblocks          5800.0    1123975.6   1937.9
Pipe Throughput                               12440.0     616305.7    495.4
Pipe-based Context Switching                   4000.0     143260.0    358.1
Process Creation                                126.0       9038.7    717.4
Shell Scripts (1 concurrent)                     42.4       5143.9   1213.2
Shell Scripts (8 concurrent)                      6.0        699.8   1166.4
System Call Overhead                          15000.0     487009.1    324.7
                                                                   ========
System Benchmarks Index Score                                         851.5

单核心得到851分,分数适中。

0x05 结语

kdatacenter性能中规中矩,对得起这个价格。估计是因为韩国带宽价格过高,才会拉升了售价,但售价太高,只能用磁盘空间来弥补了。但SSD的性能良好,做个企业站点还是没问题的,甚至做小论坛也绰绰有余。

至于网络则建议北方的朋友使用,做站点为南方或其他地区的客户提供服务,则建议套一层CDN。

kdatacenter除了价格贵还限流量,其他都很好,资金允许的情况下可以优先考虑。
